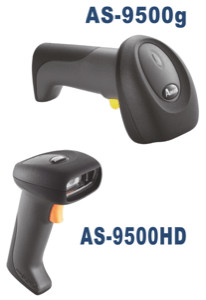

Argox AS-9500 Barcode Scanner

The Argox AS-9500 is an excellent 2D scanner for general purposes.

Argox has launched its first 2D scanner, the Argox AS-9500. The new handheld scanner is small, lightweight and easy-to-use, and not only does it read all popular 1D and 2D barcodes, it also reads postal codes and OCR. The AS-9500 works in all environments including bright sunlight up to 100,000 Lux. Now the new AS-9500 series with vibration mode comes in three models for different applications, which include the AS-9500g for general use, and the AS-9500HD for high-density scans.

The AS-9500 series is durable and designed for everyday use, meeting IP42 dustproof and waterproof standards as well as drop tests from 1.8 meters. It connects to other devices via RS-232, USB HID and USB COM port interfaces. The AS-9500 is ideal for use in applications requiring information-rich 2D barcodes, such as hospitals, pharmacies, libraries, government tax bureaus, customs, industry, automotive, and more.

Features:

  • Three different models for various applications: AS-9500g (General Use); AS-9500HD (High Density)
  • Aiming line for easy-of-use in scanning barcode
  • Plug and play connectivity – All popular interfaces are on board including RS-232, USB HID and USB COM port
  • Readable under sunlight to 100,000 Lux
  • Durable – Withstand 1.8m floor drop and reach IP42 dust and splash resistance
  • Support scanning 2-Dimensional symbols such as MaxiCode, DataMatrix, QR Code and Aztec, as well as the full range of barcode symbologies.

Download the brochure

Optical system
752 X 480 CMOS sensor
Resolution
1D:5 mil (0.127mm) min 2D: 8 mil (0.21 mm ) min
Print contrast
>= 25%
Scanning angle
Pitch: ±40° Yaw: ±40°
Decode capability
1D:
Code 11, Code 39, Code 32, Code 128, Codabar, Interleaved 2 of 5, Industrial 2 of 5,IATA 2 of
Indicator
LED and adjustable beep sound
Weight
146g
Connector type
RS-232, USB HID, USB Virtual COM
Operating mode current
Operating range: 3.5 VDC to 5.5 VDC
RS-232
Scanning : Max 300 mA@5V
Idle :Max 55mA@5V
US
Operating Temperature
0°C to +50°C (0° to 122°F)
Storage
-20°C to +60°C (-4° to 140°F)
Light level
Ambient LUX: Total darkness to 100,000 lux (full sunlight)
Shock
Floor Drop: 24 drops from 180 cm to concrete
Programming method
Command through RS232
Command through USB virtual com port
Scanner read the programming barcod
Agency Listing
BSMI, FCC, CE
Attention
Dust& Splash resistance: IP42
