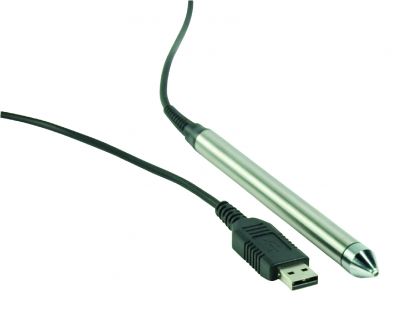

Barcode wand Scanner Pen 400

Barcode wand

The rugged Stainless steel construction makes it suitable for use in harsh environments. Available in PS2 Keyboard wedge, USB and RS232 models.

Rugged Metal Housing, lightweight and easy to use
Extremely low power consumption, replaceable tip, easy to maintain
Visible red (660nm) LED light source, infrared LED can be optional
PEN module with light source can be upon OEM request
Y-Connection mini-decoder for keyboard, or RS-232 interfaces
Extremely powerful reading performance, 4 mil (0.1nm) max. at PCS = 0.9 resolution

Specification

Optical Light Source		660nm Red LED

Resolution		0.1 mm (4mils) average

Scan Rate		5~500 cm/sec

Reading Angle		0° to 45° from vertical

Min. Narrow Bar		0.10nm at PCS = 0.9 0.10mm at PCS = 0.5

Operating Voltage		+5 V DC ±10%

Operating Current		40 mA ±10%

Reading Start Method		Without trigger switch

Barcode Signal		TTL compatible; Polarity: black bar = high, White space = low

Rise time 10 to 90 %		4 us (R=1 K)
Fall Time 90 to 10 %		1 us (R=1 K)

Readable barcodes / Symbologies		Auto-discrimination bar codes: Code 39 (Standard & Full ASCII) CODABAR /NW7, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code 128, Code 93, Code 11, MSI-PLESSEY, ISBN? EAN / JAN /UPC, etc…
