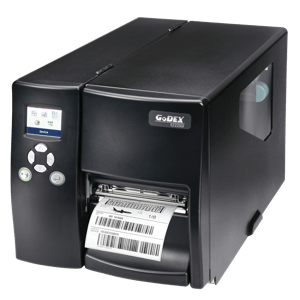

The Godex EZ2250 label printer’s All metal mechanism design featuring die-cast center plane and base makes the Godex EZ2250 series perfect for higher volume applications.

Godex EZ2250 Specifications

Print Method Thermal Transfer / Direct Thermal

Resolution 203 dpi (8 dots/mm)

Print Speed 7IPS (177 mm/s)

Print Width 4.09″ (104mm)

Print Length Min. 0.16” (4 mm); Max. 100” (2540 mm)

Memory 8MB Flash (4MB for user storage) / 16MB SDRAM

Sensor Type Adjustable reflective sensor and transmissive sensor, left aligned

Media Types: Continuous form, gap labels, black mark sensing, and punched hole; label length set by auto sensing or programming

Width: 1” (25.4 mm) Min. – 4.64” (118 mm) Max.

Thickness: 0.003” (0.06 mm) Min. – 0.01” (0.25 mm) Max.

Label roll diameter: Max. 8” (203.2 mm) , Max. 6” (152.4 mm)

Core diameter: 3”, 1.5” (76,2 mm, 38,1 mm)

Ribbon Types: Wax, wax/resin, resin

Length: 1471’ (450 m)

Width: 1.18” Min – 4.33” (30 mm – 110 mm) Max

Ribbon roll diameter.: 2.99“ (76 mm)

Core diameter: 1” (25.4 mm)

Printer Language EZPL , GEPL, GZPL auto switch

Software Label design software: GoLabel (for EZPL only)

Driver & DLL: Windows 2000, XP, Vista, 7,8, Windows Server 2003 & 2008

Resident Fonts Bitmap fonts: 6, 8, 10, 12, 14, 18, 24, 30, 16X26 and OCR A & B

Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable

Bitmap fonts 8 times expandable in horizontal and vertical directions

Scalable fonts 90°, 180°, 270° rotatable

Download Fonts Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable

Asian fonts 90°, 180°, 270° rotatable and 8 times expandable in horizontal and vertical directions

Scalable fonts 90°, 180°, 270° rotatable

Barcodes 1-D Bar codes:

Code 39, Code 93, Code 128 (subset A, B, C), UCC/EAN-128 K-Mart, UCC/EAN-128, UPC A / E (add on 2 & 5), I 2 of 5, I 2 of 5 with Shipping Bearer Bars, EAN 8 / 13 (add on 2 & 5), Codabar, Post NET, EAN 128, DUN 14, HIBC, MSI (1 Mod 10), Random Weight, Telepen, FIM, China Postal Code, RPS 128 and GS1 DataBar

2-D Bar codes:

PDF417, Datamatrix code, MaxiCode, QR code, Micro PDF417, Micro QR code, Aztec code

Code Pages CODEPAGE 437, 850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869, 737

WINDOWS 1250, 1251, 1252, 1253, 1254, 1255,1257

Unicode (UTF8, UTF16)

Graphics Resident graphic file types are BMP and PCX, other graphic formats are downloadable from the software

Interfaces Serial port: RS-232 (DB-9)

USB 2.0

Ethernet 10/100 Mbps

USB Host

Control Panel Color TFT LCD with navigation button

Power on/off button

Calibration button

Power Auto Switching 100-240VAC, 50-60Hz

Environment Operation temperature: 41°F to 104°F (5°C to 40°C)

Storage temperature: -4°F to 122°F (-20°C to 50°C)

Humidity Operation: 30-85%, non-condensing.

Storage: 10-90%, non-condensing.

Agency Approvals CE(EMC), FCC Class A, CB, cUL, CCC

Dimension Length: 20.15” (512 mm)

Height: 11.45” (291 mm)

Width: 10.78” (274 mm)

Weight 33 lbs (15Kg) ,excluding consumables

Options Cutter Module

Label Dispenser + Internal Rewinder

Parallel port adopter module (Centronic female 36-pin)

Applicator Interface (1 input, 3 outputs, power 500mA @ 5V, for project base)

External label roll holder for 10” (250 mm) O.D. label rolls

External label rewinder
