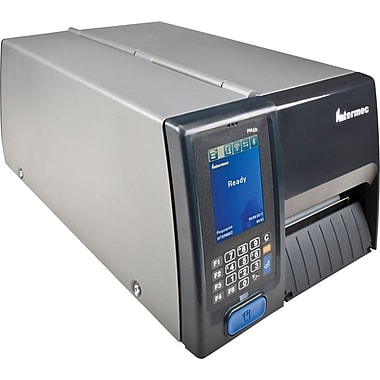

Honeywell PM43 Label Printer

PM43/PM43c/PM23c Mid-Range Industrial Printers, The Honeywell PM43 Label Printer and even more compact PM43c mid-range industrial printers deliver fast print speeds, drop-in deployment, advanced connectivity and proven reliability. Built to deliver maximum uptime, Honeywell PM43 Series printers are available with either a tamper-proof color touchscreen in 10 languages, or a universal icon interface. This enables immediate noti cations through the printer interface, reducing your workforce training and device support needs.

As one of the most connected industrial printers on the market, the PM Series feature Wi-Fi and Cisco® CCX certi cations, with additional Bluetooth® connectivity. Every printer ships with Ethernet connectivity, as well as network protocol IPv6, ensuring long-term enterprise scalability. As a third-generation industrial printer platform, rugged PM Series printers incorporate features that increase uptime and reduce maintenance costs. A strong, metal construction is perfect for harsh industrial environments. And with Precision Print, even the smallest barcodes and images can be printed with pinpoint accuracy – no frequent media adjustments necessary.

Each Honeywell PM43 Label Printer has an integrated web interface that allows for easy setup, monitoring and con guration through devices like handheld computers, tablets or smartphones. Integrated device management and diagnostic capabilities, provided through the Honeywell SmartSystemsTM Foundation and WavelinkAvalanche®,reducedowntimeandsimplifydeployment.

With fast print speeds up to 12 ips, you’ll gain a clear productivity advantage. But performance isn’t about just speed; it’s also about working smarter. The Honeywell PM43 Label Printer Series are intelligent, helping you to reduce labeling errors and increase process ef ciencies. In-printer apps, developed with Honeywell C# for Printers, can directly control

Please click here to download the brochure.

MECHANICAL

Dimensions (HxLxW):
PM23c: 181 mm X 431.84 mm X 205.5 mm (7.13 in X 17 in X 8.09 in)
PM23c with Dome Door: 244.87 mm X 500.22 mm X 205.5 mm (9.64 in X 19.69 in X 8.09 in)
PM23c with Bag Tag Door: 207 mm X 431.84 mm X 205.5 mm (8.15 in X 17 in X 8.09 in)
PM43: 294.61 mm X 483.54 mm X 284.2 mm (11.6 in X 19.04 in X 11.19 in)
PM43c: 181 mm X 431.84 mm X 252.5 mm (7.13 in X 17 in X 9.94 in)
PM43c with Dome Door: 244.87 mm X 500.22 mm X 252.5 mm (9.64 in X 19.04 in X 9.94 in)

Weight:
PM23c: 9.5 Kg (21 lb)
PM43: 15.82 kg (34.88 lbs.)
PM43c: 12.5 kg (27.65 lbs.)
PM43c with Dome Door: 12.71Kg (28.02 lbs.)

INTERFACES

User Interfaces:
PM23c: Color Touch UI Icon UI
PM43/PM43c:Color Touch User Interface Icon User Interface

User Interface Languages:
On Color Touch LCD and Web Interface
PM23c: English, Russian, German, French, Portuguese, Spanish, Italian, Korean, Simplified and Traditional Chinese
PM43/PM43c: Color Touch interface and Web Page support in English, Russian, German, French, Portuguese, Spanish, Italian, Korean, Simplified and Traditional Chinese

Standard:
PM23c: Ethernet 10/100 Mbps •RS-232, up to 115.2 kB/s •Supported Serial Protocols: •Fingerprint/Direct Protocol: XON/XOFF, ENQ/ACK, DSR/DTR, RTS/CTS •IPL: XON/XOFF, Intermec Std. Protocol •USB 2.0 •USB Host (X1 on PM23c)
PM43/PM43c: • Ethernet 10/100 Mbps • RS-232, up to 115.2 kB/s

Optional:
PM23c: •Parallel IEEE 1284 •Industrial Interface (8 digital in/out, 4 analog relays, 1 RS232/422/485 port) •Dual Serial ports RS-232, RS-422, RS-485 and 20mA Current Loop •Dual USB Host
PM43/PM43c: • Parallel IEEE 1284 • Industrial Interface (8 digital in/out, 4 analog relays, 1 RS232/422/485 port) • Dual Serial ports RS-232, RS-422, RS-485 and 20mA Current Loop • Dual USB Host/Boot

Wireless:
PM23c: •IEEE 802.11 b/g/n + Bluetooth •Wi-Fi Certified, CCX (Cisco®) version 4 Certified •Static WEP (64 bit and 128 bit), Dynamic WEP (TLS, TTLS, PEAP, LEAP, EAP-FAST), WPA (TKIP/CCKM Personal and Enterprise, WPA2 (AES-CCMP/CCKM Personal and Enterprise) •Multiple industrial antenna options for maximized coverage
PM43/PM43c: • IEEE 802.11 b/g/n + Bluetooth® • Wi-Fi Certified, CCX (Cisco®) version 4 Certified • Static WEP (64 bit and 128 bit), Dynamic WEP (TLS, TTLS, PEAP, LEAP, EAP-FAST), WPA (THIP/CCKM Personal and Enterprise, WPA2 (AES-CCMP/CCKM Personal and Enterprise) • Multiple industrial-antenna options for maximized coverage

Supported Protocols:
PM23c: TCP/IP-suite (TCP, UDP, ICMP, IGMP), LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv1/2c/3, SNMP-MIBII supported – over UDP/IP – (private enterprise MIB included), SMTP •Supports IPv4 and IPv6 •”No-touch” configuration capability through embedded RFID chip
PM43/PM43c: TCP/IP-suite (TCP, UDP, ICMP, IGMP, etc.), LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv1/2c/3, (SMTP.SNMP-MIBII supported – over UDP/IP – private enterprise MIB included) • Supports IPv4 and IPv6 • “No-touch” configuration capability through embedded RFID chip

Supported Serial Protocols:
PM43/PM43c: • Fingerprint/Direct Protocol: XON/XOFF, ENQ/ACK, DSR/DTR, RTS/CTS • IPL: XON/XOFF, Intermec Std. Protocol • USB 2.0 • USB Host/Boot (X1 on PM43C, X2 on PM43)

Graphics:
PM23c: Supports PCX, PNG, GIF and BMP file formats. Other formats supported with Label Generation Tools.
PM43/PM43c: Supports PCX, PNG, GIF and BMP file formats. Other formats supported with Label Generation Tools.

Fonts:
PM23c: •Monotype font engine •Non-Latin fonts available through WTLE
PM43/PM43c: Monotype font engine Non-Latin fonts available through WTLE

Contact your Honeywell sales representative for the most recent list of agency approvals.

PRINT SPECIFICATIONS

Max Width:
PM23c: Max. Width at 203dpi: 56 mm (2.2 in) Max. Width at 300 dpi: 56 mm (2.2 in) Max. Width at 406 dpi: 64 mm (2.5 in)
PM43/PM43c:Max. Width with 203 dpi: 108 mm (4.25 in) Max. Width with 300 dpi: 106 mm (4.17 in) Max. Width with 406 dpi: 104 mm (4.09 in)

Max length:
PM43/PM43c:Depending on width (203 dpi to 406 dpi): (1.2 m) 48 in to (4.8 m) 191 in

Print Speed:
PM23c:At 203/300 dpi: 100-300 mm/s (4-12 ips) At 406 dpi: 100-250 mm/s (4-10 ips)
PM43/PM43cc:100 – 300 mm/s (4 – 12 ips) variable (203/300 dpi) 100 – 250 mm/s (4 – 10 ips) variable (406 dpi)

Resolution:
PM23c:At 203 dpi: 8 dots/mm At 300 dpi: 11.8 dots/mm At 406 dpi: 16 dots/mm
PM43/PM43c:8 dots/mm (203 dpi) 11.8 dots/mm (300 dpi) 16 dots/mm (406 dpi)

Media Type:
Labels and Tags, Linerless and Linered media

Max label width:
PM23c:Max/Min Width: 68.6mm/2.7 in (19.05mm/0.75in)
PM43/PM43c:Max/Min Width: 114.3 /19.05 mm (4.5 /0.75 in)

Thickness:
PM43/PM43c:3 to 10.4 mil

Style:
PM23c:Roll-fed or fanfold PM43/PM43c:Roll-fed or fanfold

Sensing:
PM23c:Gap, notch, black mark, continuous PM43/PM43c:Gap, notch, black mark, continuous

Label Roll Max Diameter:
PM23c:Long Door: 152 mm (6 in) All Other Doors: 213 mm (8.38 in)
PM43/PM43c:Long Door: 152 mm (6 in) All Other Doors: 213 mm (8.38 in)

Label Roll Core:
PM23c:38-76 mm (1.5-3 in)
PM43/PM43c: 38 – 76 mm (1.5 – 3 in)

Media Type:
PM23c: Ribbons PM43/PM43c: Ribbons

Label Roll Max Diameter:
PM23c: 61 mm (2.40 in), 229 m
PM43/PM43c: 80 mm (3.15 in), approx. 450m

Label Roll Core:
PM23c: Core ID: 25 mm (1 in)
PM43/PM43c: Core ID: 25.4 mm (1 in)

Media Type:
PM23c: Wax, mid-range, resin
PM43/PM43c: Wax, mid-range, resin

Media Type:
PM23c: RFID
PM43/PM43c: RFID

RFID Standards and Frequencies:
PM23c: 18000-6C / EPC Class 1 Generation 2 865-928 MHz radio configured to comply with local UHF RFID regulations including FCC and ETSI. Contact local representative for availability in particular regions.
PM43/PM43c: 18000-6C / EPC Class 1 Generation 2 865-928 MHz radio configured to comply with local UHF RFID regulations including FCC and ETSI. Contact local representative for availability in particular regions.

MEMORY

SDRAM
PM23c:128MB
PM43/PM43c:128MB

Flash ROM
PM23c:128MB
PM43/PM43c:128MB

Memory/Storage Extensions PM23c: Multi-GB USB memory device (FAT16/FAT32)
PM43/PM43c: Multi-GB USB memory device (FAT16/FAT32 USB drivers supported)

SOFTWARE

Printer Command Languages:
PM23c:•IPL, DP, ZSim2 (ZPL-II®), DSim (DPL) •XML enabled for SAP® AII and Oracle® WMS
PM43/PM43c:• C# for Printers • IPL • Direct Protocol • ZSim2 (ZPL-II®) • DSim (DPL) • XML enabled for SAP® AII and Oracle® WMS

Smart Printing Languages:
PM23c:•Intermec C# for Printers •Smart Printing Developer Resource Kit •Write apps with .NET-compatible development environments •Intermec Fingerprint •Use Intermec Fingerprint ApplicationBuilder (IFAB)
PM43/PM43c:C# for Printers • Smart Printing Developer Resource Kit • Write apps with .NET-compatible development environments Intermec Fingerprint • Use Intermec Fingerprint ApplicationBuilder (IFAB)

Configuration & Device Management Support:
PM43/PM43c:• PrintSet for printer configuration • SmartSystems™ • Sophisticated web interface for configuration, upgrade and 1:1 management • Wavelink Avalanche™

Applications & Drivers:
PM23c:•InterDriver™ Windows printer driver •CUPS driver for Linux •Intermec Certified Device Types for SAP® •Intermec label design and print package
PM43/PM43c:• InterDriver™ Windows printer driver • CUPS driver for Linux • Intermec Certified Device Types for SAP® • Intermec label design and print package

SUPPORTED BARCODE SYMBOLOGIES

All major 1D and 2D symbologies are supported.

Standards Supported:
PM43/PM43c:UPC/EAN Shipping Container; UCC/EAN 128 Serial Shipping Container; MH10.8 Shipping Label; AIAG (shipping parts label); OGMARS; POSTNET; HIBCC; ISBT 128; GM1724; UPS shipping label; Global Transport Label

POWER

AC Voltage:
PM23c: 100 to 240 VAC, 45 to 65Hz
PM43/PM43c:100 to 240 VAC, 45 to 65Hz

PFC Regulation:
PM23c: IEC320/C14
PM43/PM43c: IEC320/C14

Power Consumption:
PM23c:Standby 9W; Peak 300W
PM43/PM43c:Standby 9W; Peak 300W

ACCESSORIES

PM23c:Consult the PM Series Accessory Guide for full details: RFID UHF, integral self-strip unit with liner takeup, label taken sensor (LTS), parallel interface board, additional serial interface boards, industrial interface boards, real time clock, media supply hub, media low sensor
pm43/pm43c:Options and Accessories
RFID UHF, integral self-strip unit with liner takeup, Label Taken Sensor (LTS), Full Batch Label/Liner Rewinder, parallel interface board, additional serial interface boards*, industrial interface boards*, real time clock, media supply hub, Collapsible Ribbon core cutter, Media low sensor, Linerless. *Not applicable when using IPL firmware.

ENVIRONMENTAL

Operating Temperature:
PM23c:+5°C to +40°C (+41°F to +104°F)
PM43/PM43c:+5°C to +40°C (+41°F to +104°F)

Storage Temperature:
PM23c:-20°C to +70°C (-4°F to +152°F)
PM43/PM43c: -20°C to +70°C (-4°F to +152°F)

Humidity:
PM23c: 20 to 80% non-condensing
PM43/PM43c:20 to 80% non-condensing
