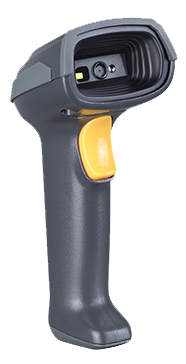

Mindeo MD6100 Barcode Scanner

Mindeo MD6100 Read all major 1D & 2D symbols, as well as those on electronic screens.

• Read all major 1D & 2D symbols, as well as those on electronic screens
• Image auto-detection, supports both handheld and presentation scanning modes
• Ergonomic, snappy and stylish design allows for a natural and comfortable grip
• Protects your future investment with 2D capability at an affordable price meeting both current and future barcode scanning needs
• Omnidirectional scanning
• Suitable to operate in diverse working environments
• Ready for all POS systems
• Easy firmware upgrade

Download the brochure

Mindeo MD6100 Mechanical Characteristics

Dimensions:  Height × Width × Depth：178 mm × 69 mm × 82 mm
Weight:  146 g, without cable
Cable: Straight 2.0 m
Connector Type: RJ-45 phone jack connector
Case Material: PC+TPU
Indicator: Beeper, LED
Interface Supported: RS-232, USB Keyboard, USB virtual COM
Operating Mode: Hand-held, Auto-detection
Programming Method: Manual (reading special barcode)
Firmware: Upgrade Online

Mindeo Md6100 Electrical Characteristics

Input Voltage: 5 VDC ± 0.25 V
Power Standby: 0.40 W, Working: 1.20 W
Current Standby: 80 mA, Working: 240 mA

Scan Performance

Image Size: 640 × 480 pixels
Imager Field of View: Horizontal: 40°, Vertical: 30°
Scanning Angle: ±60°, ±40°, 360° (skew, pitch, roll)
Print Contrast: 20% minimum reflective difference
Decoding Capability: 1D: UPC-A, UPC-E, UPC-E1, EAN-13, EAN-8, ISBN (Bookland EAN), ISSN, Code 39,
Code 39 full ASCII, Code 32, Trioptic Code 39, Interleaved 2 of 5, Industrial 2 of 5
(Discrete 2 of 5), Matrix 2 of 5, Codabar (NW7), Code 128, UCC/EAN 128, ISBT 128,
Code 93, Code 11 (USD-8), MSI/Plessey, UK/Plessey, China Post, China Finance,
Telepen, GS1 DataBar (formerly RSS) variants
2D: PDF417, QR Code, DataMatrix, Han Xin Code, Aztec Code, MicroQR Code
Minimum Resolution: 5 mil, 1 mil = 0.0254 mm
Decoding Depth: 5 mil Code39 ( 3 chars): 1.5 cm – 5.5 cm
13 mil UPC (6 chars): 0.5 cm – 13.0 cm
20 mil Code39 ( 5 chars): 4.0 cm – 18.0 cm
6.7 mil PDF417 (20 chars): 1.0 cm – 8.2 cm
10 mil DM (20 chars): 1.0 cm – 8.0 cm
20 mil QR (20 chars): 1.5 cm – 16.5 cm
Environmental Characteristics
Temperature: -10° to 50°C (14° to 122°F), operating; -20° to 60°C (-4° to 140°F), storage
Humidity: 5% to 95% (non-condensing)
Safety: EMC: EN55022, EN55024 | Electrical Safety: EN60950-1 | Sealing: IP52
Photobiological Safety: EN62471:2008 | Illumination: 0~100,000 LUX
Drop Resistance: Withstands multiple 2.0 m (6.6 ft.) drops to concrete
