Barcode Scanners

The New Syble XB-916BT 1D Wireless Bluetooth Barcode Scanner

The Syble XB-916BT Wireless Barcode imager.

The New XB-916BT Bluetooth Barcode Scanner is a top selling scanner from Syble. A budget friendly Bluetooth scanner that performs as well as, and in most cases even better than many expensive competing brands. Best of all, The scanner has a dedicated charger base that allows the scanner to be charged without being connected to a computer.

The XB-916BT can connect wirelessly to your Personal Computer USB port via the charging cradle, or via Bluetooth into IOS or Android devices.

Rated for scans in excess of 10,000 scans per month. Syble adopted the latest decoding technology with a 32 bit micro processor. For situations where off line scanning is required, The scanner can be switched to batch mode scanning merely by scanning a dedicated barcode. Saved scans can be retrieved by scanning another dedicated barcode. It’s that simple.

The XB-916BT supports most common 1D  Barcodes such as UPC,EAN ,Industrial 2 of 5, etc. Best of all the lightweight and Ergonomic design alleviates customer fatigue ,making it suitable for most operating environments especially continuous operations such as point of sale and checking out.

Model NumberXB-916BT
Performance Parameters
Light Sources617nm Red visible LED
Supported SymbologiesUPC-A, UPC-E, EAN-13, EAN-8, Codabar, Code 39, Code 39 full Ascii, China Post, Plessey, MSI, Code 93, Code 128, Industrial 2 of 5, Interleave 2 of 5, Code 11, ISBN, Code 32 (Italian Pharm Code), Code 39 Extended, GS1-128 and ITF-14, SISAS, GS1 Omni, GS1 Limited, Matrix 2 of 5, Aviation25, RSS14.
Scan TypeCCD image sensor
Scan Speed≥270 scans / Second
Scan AngleYaw 65°,Rotation 30°,Pitch 55°
Resolution Ratio2500 Points
Scan ModeManually/Contnuous/Automatic Scintillation/Automatic induction scanning
Precision≥4mil, 3mil (Optional)
Depth of scan field20-330mm(0.33mm, PCS90%)
Error Rate1/5 million
InterfaceUSB-HID,USB-COM
Wireless Communication ModePaired Special receiver: 2.4g Communication; Pairing with mobile bluetooth devices: Bluetooth BLE4.0
Wireless transmission distanceOpen space: 100 Meters
Storage ModeOfflinestorage mode: When scanner exits connection range, Data is stored. Storage capacity is 512,000 characters.
Inventory storage mode: Storage capacity is 412,000 characters.
Pairing ModeMatching Mode:
One-to-one:Scanner paired with receiver.
Scanner paired with Bluetooth mobile device
Operating FrequencyBluetooth V2.1+EDR(Class 1)
Transmission Distance≤100M(Open yard)
Storage Ability512000Bytes
Pairing ModelOne to one,Many to one,(Max 7 channels)
Physical Parameters
Dimensions85mm*62mm*154mm
Weight32.5g
MaterialABS+PC
Cable Length1.2M
Drop/Shock resistanceWithstands Multiple 1.5 Meter drops to concrete.
Environmental Parameters
Operating Temperature-20℃~60℃
Storage Temperature-40℃~70℃
Relative Humidity5%~95%(Non-condensing)
Ambient Lighting0`1000000LUX
Electrical Parameters
VoltageDC5V±5%
Lithium battery2200mA
Battery Working Times12h
Charging Time5h
Standby Current2mA
Operating Current not scanning≥65mA
Operating Current scanning≥170mA

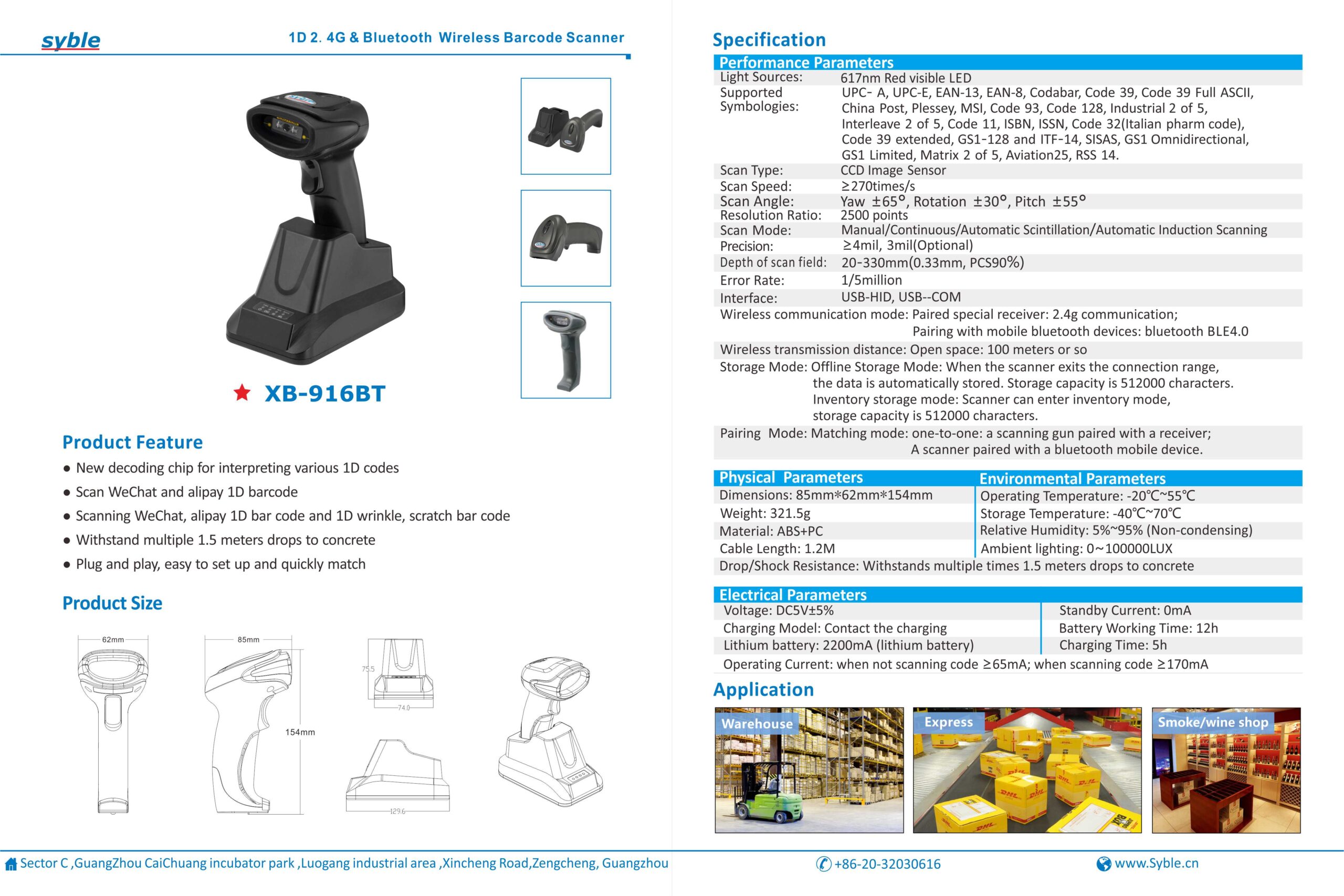

Download Brochure

Download Scan Sheet
