Godex T20 Label Rewinder

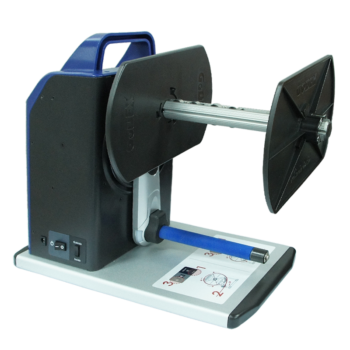

The Godex T20 rewinder has an idler arm that can be positioned to rewind labels from either side of the printer. Depending on the user’s requirements, the Godex T20 can rewind “inside or outside” label rolls.

Features:

Supports maximum 7″ label roll rewinding.
Can be used with all GoDEX’s printers.
Supports inside and outside label rewinding.
Stylish appearance plus a rugged design for long term reliability
Colored LED indicator provides rewinder operation status
Support three Core Size: 1” (25.2 mm – 25.6 mm), 1.5” (40 mm – 40.6 mm) and 3″ (76 mm – 76.6 mm); Core and coreless kits included.

Specifications:

Paper Width	Max. 177.8 mm (7”)
Rewind Speed	Auto mode:12 IPS (max) Fixed mode: Coreless 5.4IPS, 1 inch Roll 6.3IPS
Label Roll Diameter	Max. O.D. 152.4 mm (6”)
Core Diameter	Coreless I.D. 1” (25.2 – 25.6 mm) I.D. 1.5”x2 (37.4 – 38 & 40 – 40.6 mm) I.D. 3” (76 – 76.6 mm)
Label Roll Weight	5 Kg (11 lbs)
Rewinding	Label Inside / Label Outside
Motor	Hybrid Motor
Power	100 – 240VAC 24W, 24V Adapter
Environment	Storage: -4°F to 140°F (-20°C to 60°C) Operation: 41°F to 104°F (5°C to 40°C)
Humidity	10 – 85% (non-condensing RH)
Agency Approvals	CE, FCC Class A
Dimension	Length: 15.5” (394 mm) Height: 11.9” (303 mm) Width: 7.1” (180 mm)
Weight	11 lbs (5 Kg), excluding consumables
Note	* Specifications are subject to change without notice.
