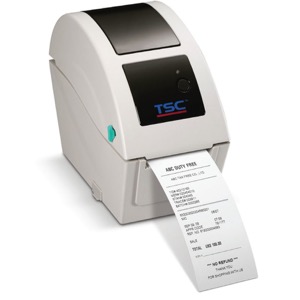

The TSC TDP-225 Label Printer the small label printer with big features
The TSC TDP-225 Label Printer, this direct thermal printer features a compact design and high-performance engine that makes it perfect for healthcare, retail and asset tag labelling applications.
The TDP-225 Label Printer prints at 127mm/second and is the first low-cost affordable compact 2-inch (51mm) desktop printer to offer an optional LCD display for easy tracking of print job status. Other outstanding features include an inexpensive internal Ethernet adapter for easy integration into networks and an optional keyboard for printing labels in stand-alone or downtime situations. The TDP-324 is also available, featuring high resolution 300 dpi printing resolution and 101mm/second print speed.
Designed with the customer in mind, the compact TDP-225 label printer fits into tight spaces and supports a wide range of applications. It also features a user-friendly design that allows users to simply open the cover and drop labels into a spring-loaded 127mm OD media bay. Top-of-form sensing using gap, black mark or notch is standard, and the black mark sensor is completely adjustable.
With enhanced electronics, the TDP-225 series offers a 200 MHz processor, standard memory of 4 MB Flash, 8 MB SDRAM and a microSD expansion slot that increases Flash storage up to 4 GB. The printer supports standard industry emulations, including the Eltron® and Zebra® languages.
Applications
- Healthcare Patient Tracking
- Lab Sample Tracking
- Information Labels
- Medical Record Labeling
- Jewellery identification and pricing
- Work-in-Process Tracking
- Dietary Labeling
- Price Labeling
- Inventory & Asset Management
- Small Office or Home Office Mailing
- Shipping
- File-Folder Labeling
- Shipping
- File-Folder Labeling
Key Features
- High quality double-walled clamshell design
- 127 mm 5” OD media capacity
- Up to 127 mm (5″) per second print speed
- Available in 203 dpi and 300 dpi resolutions
- Easy media loading
- Head open sensor
- MicroSD Flash memory expansion up to 4 GB
- Serial and USB 2.0 connectivity
- Optional front LCD display, internal Ethernet, peel-off module, cutter module, Bluetooth module, external 802.11 b/g/n wireless module, stand-alone keyboard
- Optional front LCD display, internal Ethernet, peel-off module, cutter module, Bluetooth module, external 802.11 b/g/n wireless module, stand-alone keyboard
