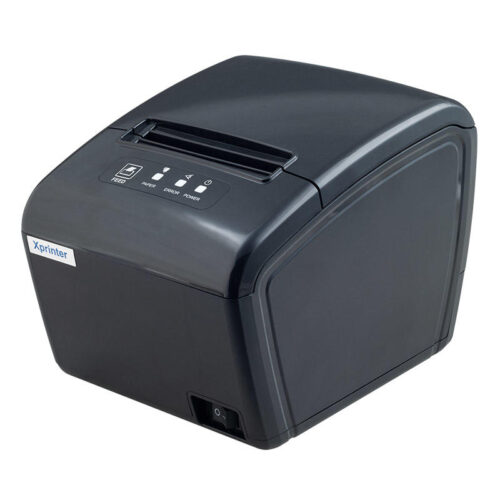

Manufactured specifically to compete in the crowded receipt printer space, The Xprinter XP-S200M is engineered to stringent specifications. The printer shell is made from high impact plastic, to allow for use in reasonably harsh environment.
The operating system has been loaded with features, allowing for the printer to be a drop in replacement for a range of upmarket brands.
The XP-S200M Receipt printer features an impressive 79.5mm paper width.
The XP-S200M is a high end of thermal receipt printer, designed for vertical printing and is wall mountable.
Easy drop-in paper loading
Steady performance: Automaticaly Resumes from cutter jam error’s
Energy control system to prevent print head from overheating.
XPrinter XP-S200M Specifications.
| Printing method | Direct thermal |
|---|---|
| Printing speed | 200mm/s |
| Paper width | 79.5±0.5mm |
| Printable area | 72mm(adjustable by commands) |
| Maximum paper diameter | Φ83 mm |
| Paper thickness | 0.06-0.08mm |
| Column capacity | 576 dots/line 512 dots/line |
| Line space | 3.75mm(Changeable by commands) |
| Commands | Compatible with ESC/POS |
| Interface type | USB and LAN |
| Character size | ANK, Font A: 12×24 dots |
| Font B: 9×17 dots | |
| simplified/traditional Chinese: 24x24 dots | |
| Dimension | 180×140×134.1mm(D×W×H) |
| Gross weight | 0.97 kg |
| Bar code | UPC-A/UPC-E/JA(EAN13)/JAN8(EAN8)/CODE39/ITF/CODABAR/CODE93/CODE128 |
| 2-dimension code | QR CODE / PDF417 |
| Code page | PC347(Standard Europe), Katakana, PC850(Multilingual) , PC860(Portuguese), |
| PC863(Canadian-French), PC865(Nordic), WestEuropeGreek, Hebrew, | |
| East Europe, Iran, WPC1252, PC866(Cyrillic#2), PC852(Latin2), Pc858, | |
| IranII, Latvian, Arabic, PT151(1251) | |
| Cutter life | Partial |
| Cutter life | 1.5 Million Cits |
| Print head life | 100Km |
| Input buffer | 64 Kbytes |
| NV Flash | 256 Kbytes |
| Power adaptor | AC110V/220V, 50~60Hz |
| Power source | DC 24V/2.5A |
| Cash drawer output | DC 24V/1A |
| Work environment | Temperature: 0~45 , humidity: 10~80RH% |
| Storage environment | Temperature: -10~60 , humidity: 10~90RH% |
| Operating system | Win XP/Win Vista/Win 7/Win 8/Win 8.1/ Win10 /Linux |
